Arco

FDM 3D PRINTER

Fast Start, Flawless Finish

BUY NOW
Industrial Grade Cooling
300×300×300mm³ Large Volume
Aerospace-Grade Alloy
One-Piece Flying Gantry
Versatile Software Compatibility
Fast Multi-Color Swapping
Removable Protective Enclosure

High-Speed, No Wobble

Breaking Away from Traditional Moving-Bed Designs

Engineered from the Ground Up for Total Stability

Most CoreXY printers move the heated bed during printing, which causes the model to shake. ARCO uses a fixed heated bed that keeps the print steady while its flying gantry lifts the printhead with precision. Like an F1 car accelerating with perfect control, ARCO delivers both speed and stability in every layer.

Typical FDM Structure

  • Model moves with the bed, causing wobble.
  • Unstable center of gravity.
  • Large prints often fail.
  • Higher risk of layer shifts and stringing.

ARCO’s Optimized Structure

  • Model stays firmly in place on the heated bed.
  • Low center of gravity for ultra stable printing.
  • High success rate, even with large-scale models.
  • Lower risk of layer shifting and stringing.

Details Matter. ARCO Delivers Rock-Solid Stability

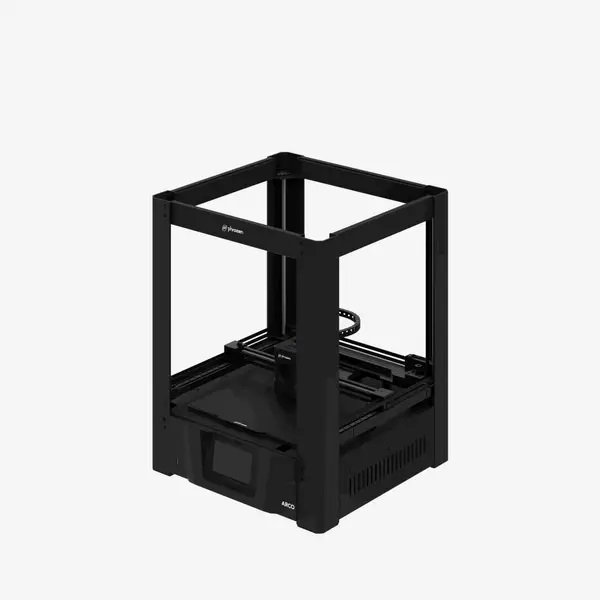

Full-Body Aerospace Aluminum Frame

ARCO is built with 6000-series aerospace-grade aluminum. Four T-type lead screws and reinforced columns add strength and rigidity for consistent performance at high speeds.

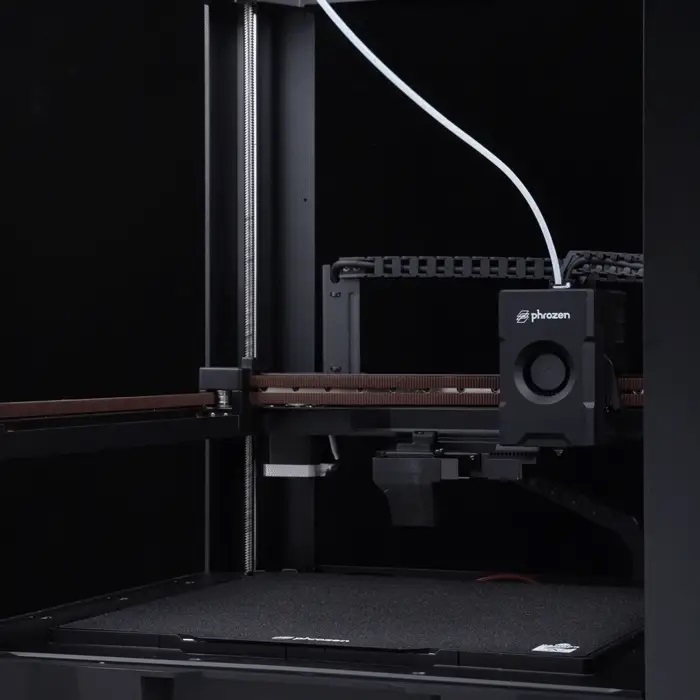

One-Piece Flying Gantry with XY Linear Rails

An all-metal flying gantry combined with precision XY linear rails ensures smooth travel and precise movement across every axis.

4-Layer Heated Bed with Over 90% Heat Uniformity

The bed reaches 100°C in just 2 minutes. With over 90 percent heat distribution, it helps prevent warping and keeps large prints firmly in place from the first layer.

ARCO: Big. Fast. Unstoppable

300×300×300mm³ Large Printing Volum |  Max Print Speed: 1,000 mm/s* |  Acceleration: Up to 40,000 mm/s² | Max Flow Rate: 50 mm³/s

Keep Up with Your Inspiration — Design It, Print It, Done Fast

Raining? Print New Slippers at Work and Walk Them Home After

Hit Send Before Bed, Wake Up to a Castle — Printed Overnight

Details Matter. ARCO Delivers Rock-Solid Stability

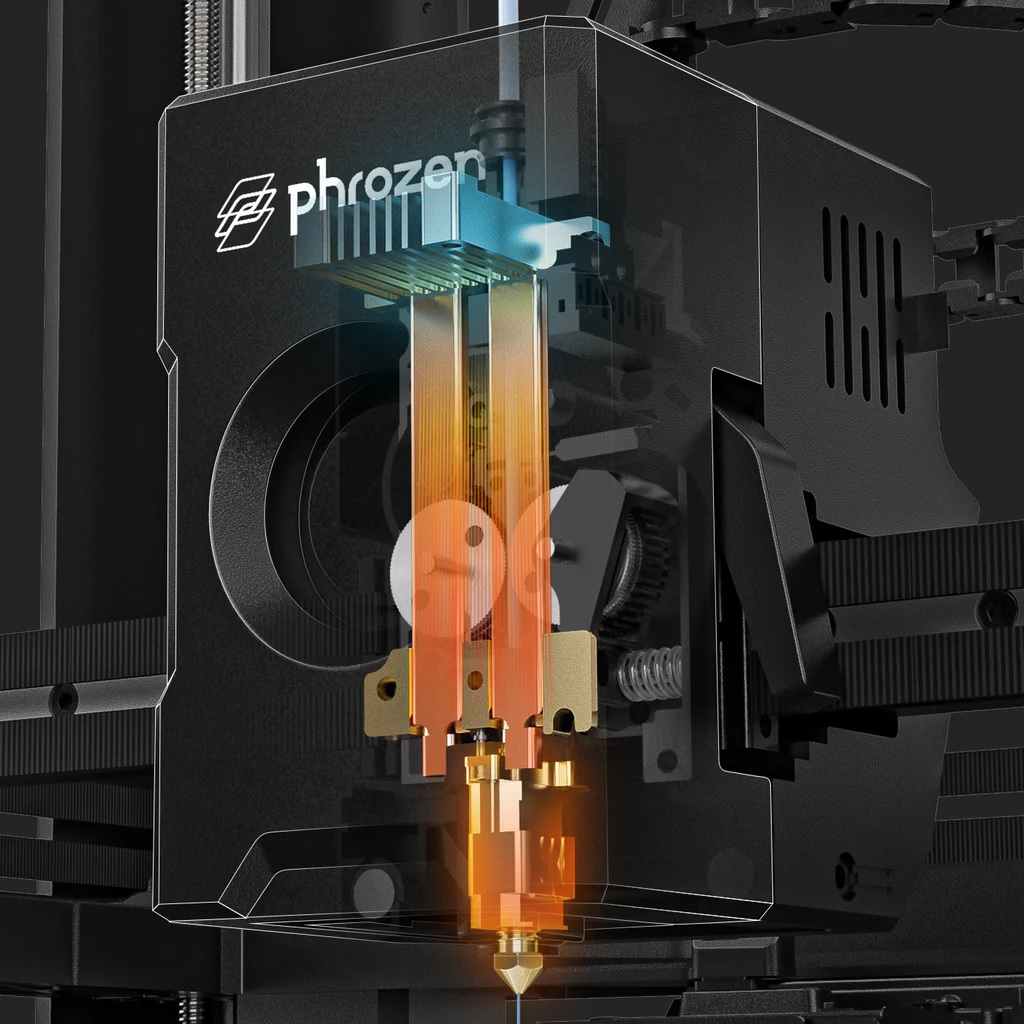

ARCO is the first to bring patented industrial-grade heat pipe technology to FDM printing. Paired with a huge 18 mm gear, this system cools efficiently and shortens the distance between the extrusion gear and nozzle, delivering stronger torque and higher flow for smoother, clog-free printing.

ARCO DEP Extrusion: High Stability, Maximum Precision

Standard Extrusion

  • Longer extrusion path.
  • Frequent extrusion issues.
  • Smaller gears lead to weaker torque and low flow.
  • Quality varies with different materials.

ARCO DEP Extrusion

  • Ultra-short extrusion path.
  • Smooth and more precise extrusion.
  • Larger gears provide stronger torque and higher flow.
  • Consistent quality across a wide range of materials.

4-Tube Direct Feed for 50% Faster Color Swaps

Unlike standard 4-in-1-out systems that constantly load and unload filaments, ARCO uses four dedicated tubes that feed directly into the print head. This streamlined setup speeds up color changes by 50 percent and reduces print interruptions. Enjoy smoother multi-color printing and focus more on creating, not waiting.

BUY NOW

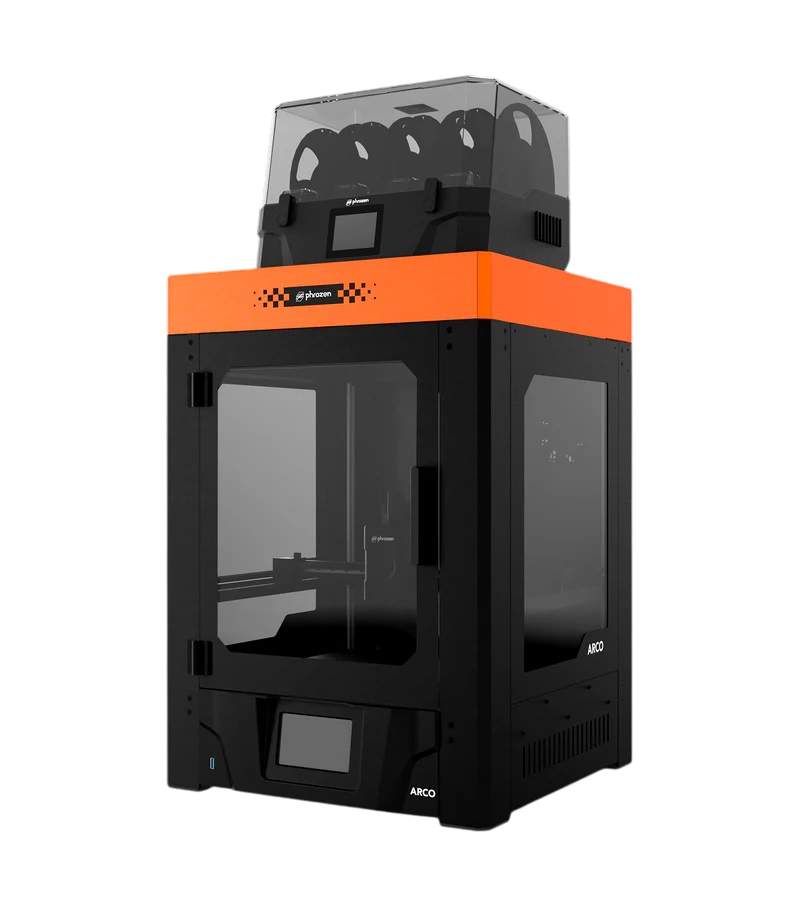

Flexible Enclosure for a Quieter, Cleaner PrintEnvironment

ARCO’s upgraded five-piece steel enclosure reduces noise by 15%, filters odors with an activated carbon filter, and maintains steady airflow with smart temperature control—optimized for five filament types. Choose automatic fan adjustment or switch it off for special prints. The top cover accommodates multi-color modules, saving space and streamlining setup.

BUY NOW

ARCO Premium Nozzle Options for Every Print Job

Tri-Channel Design for High-Speed Printing

Designed by Bondtech, the CHT® nozzle uses a triple-channel molten core to boost melting efficiency. It supports flow rates up to 50 mm³ per second, making it ideal for fast prints and large-scale models.

Durable Coating with Excellent Heat Transfer

Created by Slice Engineering for ARCO, the GammaMaster® combines a hardened alloy, Low Gamma™ coating, and copper-based core. It offers strong wear resistance and high thermal conductivity, perfect for long jobs and abrasive filaments.

Stable Heat Conduction for Everyday Printing

Perfect for daily use with PLA, PETG, and other common filaments. This nozzle delivers reliable heat transfer and steady performance across your regular print jobs.

Get Started with ARCO. Easy Setup, Zero Hassle

ARCO comes with everything you need to print confidently. From setup to your first finished model, our tools and guides help you get started fast and stay on track.

PIXUP Marketplace

Phrozen’s high-quality, in-house developed 3D model marketplace allows you to download and start printing anytime.
Visit Now

Phrozen Orca Slicer

A special version cooked up by Phrozen and Orca. Built on the full Orca setup but fine-tuned for Phrozen machines. Smooth, stable connection with ARCO and Chroma Kit, plus full support you can count on.
Download Now

Klipper System

Powered by the popular Klipper firmware trusted by advanced makers, ARCO gives you full access to open settings, letting you push performance to the limit. *Change settings carefully to avoid mistakes that might cause the printer to work incorrectly.
Learn More

ARCO Specifications

  • Technology: FDM (Fused Deposition Modeling)
  • Structure: CoreXY Fixed Print Bed Structure
  • Color Support: Multi-color compatible (requires Chroma Kit)
  • Print Volume: 30.0 × 30.0 × 30.0 cm
  • Max Print Speed / Acceleration: 1,000 mm/s; Max 40,000 mm/s² acceleration
  • Max Flow Rate: 50 mm³/s (CHT nozzle)
  • Print Bed Material: High-temperature dual-sided textured PEI print bed
  • Max Heated Bed Temperature: 110 °C / 230 °F
  • Software: PIXUP FDM Slicer / Orca Slicer, Wi-Fi / USB file transfer, .gcode format
