LARGE-FORMAT INDUSTRIAL-GRADE 3D PRINTERS
IEMAI 3D Industrial Grade Series
Designed for large scale prototypes
These printers are all open-filament and open-source.
They have large printing build plate for huge items and large flow-rate extruder for massive print at once.
YM-NT-750
Build Volume：750×750×750 mm
Printing Temperature： Max 300°C
Hot Bed Temperature：Max 120°C
Chamber Temperature : Max 60°C
Filament Box Temperature:：Max 60°C
Composite: CF-PC,CF-PA,GF-PA,CF-ABS,CF-ASA,CF-PETG,CF-PLA etc
Engineering: PC,PA,ASA,ABS,TPU,PETG,PLA etc
Support：E-Water,E-Remove etc
YM-NT-1000
Printing Temperature:300℃
Hot Bed Temperature:120℃
Build Volume:1000×1000×1000 mm
Power Failure Recovery, Filament Detection, Cloud Remote OTA
Vacuum Adsorption Platform
IDEX Dual Nozzle
YM-NT-1200
Printing Temperature:275℃
Hot Bed Temperature:120℃
Filament Box Temperature:120℃
Build Volume:1200×1200×1200 mm
Power Failure Recovery, Filament Detection, Cloud Remote OTA
Vacuum Adsorption Platform
IDEX Dual Nozzle

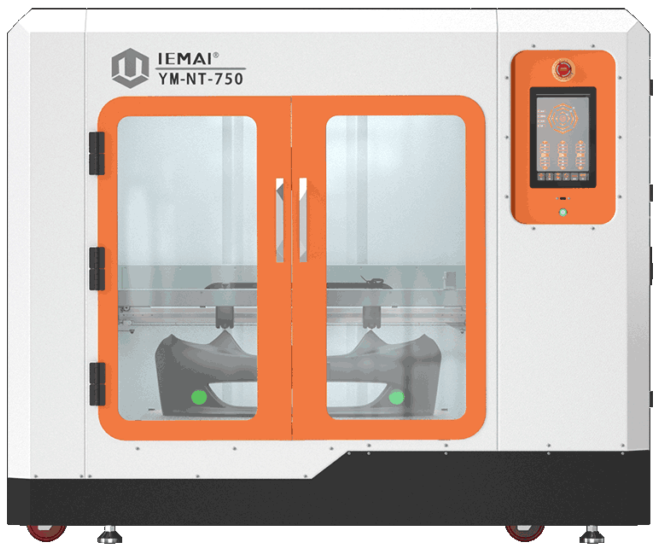

SPECIFICATIONS IEMAI YM-NT-750
Printing Temperature:Max 300℃
Hot Bed Temperature:Max 120℃,Glass Platform
Chamber Temperature:Max 60℃
Filament Box Temperature:Max 60℃
Temperature Secure Function:Temperature PID Auto Tuning,Temperature Stability ±2℃
1.75mm Diameter 3D Printing Filament（Thermoplastic）
Composite:CF-PC,CF-PA,GF-PA,CF-ABS,CF-ASA,CF-PETG,CF-PLA etc,Dimensional Accuracy 100mm±0.15mm
Engineering:PC,PA,ASA,ABS,TPU,PETG,PLA etc,Dimensional Accuracy 100mm±0.15mm
Support：E-Water,E-Remove etc
Printing Speed:Max 150mm/s
Acceleration:1000mm/s²
Flow:16.5mm³/s(0.6mm Nozzle，100mm/s Speed,Under Condition of PLA Printing)
Cooling Method:Air Cooling
Nozzle Quantity:2 Nozzle Modular，IDEX Individual Motion
Nozzle Size:0.6mm（Standard）/0.4mm（Optional）
Nozzle Material:Copper Alloy（Pure Materials）/Hardened Steel（Fiber Reinforced Materials）
Recommended Layer Thickness:0.05-0.3mm
XYZ Axis Motor:High Torque Stepper Motor
XY Axis Transmission:Linear Guide & Synchronize Belt
Z Axis Transmission:Rod Guide & Ball Screw
Positioning Accuracy:X/Y:5.86μm Z:1.56μm
Screen:10.1In Color Touch Screen
Screen Resolution Ratio:1280x800Px
Flash Memory:4GB
Internal Memory:16GB
Motion Control Chip:STM32 ARM Cortex-M4 180MHz
Logic Control Chip:RK3588S Octa-Core 64Bits 2.4GHz+1.8GHz
Slicing Software:IEMAI 3D SLICER,CURA,S3D,Prusa,OrcaSlicer
Feature Functionality:
Power Failure Recovery,Filament Detection,Automatic Leveling,Automatic Switch-Off,Material Feeders Synchronize Control,Dual Nozzle IDEX Left Right Individual Motion,Dual Nozzle XYZ Distance Calibration,Automatic Cleaning Nozzle,Temperature PID Auto Tuning,Cloud Remote OTA
Machine Operating System:Linux
Data Transmission:Ethernet,USB,WIFI
Cloud Monitor and Control（Free）
Local Network Transmission and Control (Applicable to Confidentiality Enterprises,USD 980 Permanently Authorize 3 Accounts,USD 120 for Each Additional Account)
Motion Control Firmware:Optimized Firmware Based On Marlin 2nd Development
File Formats:STL,OBJ,3MF etc
Operating System:Windows10/11 64 Bits
Build Volume:750*750*750mm
Machine Size:1642*1110*1320mm
Package Size:1800*1300*1550mm
Net Weight:400KG
Gross Weight:480KG
Brand:Mean Well
Power Supply:220V±10% 50-60Hz Max Power 4500W
24 Hrs Average Power Consumption:2.2KW/H(ABS Printing) 0.5KW/H(PLA Printing)
Machine,Tool Kits,Start-Up Material Sets,Spare Parts,Slicing Software(Free)
YM-NT-750 is specially designed for engineering plastic, with a temperature of 300 °C extruder temperature and 120 °C
hot bed temperature, it is able to support most of the plastic on the market. It had a modular mechanism on the
extruder which allow it to have simple maintenance and able to equip large-flow print extruder for massive print.

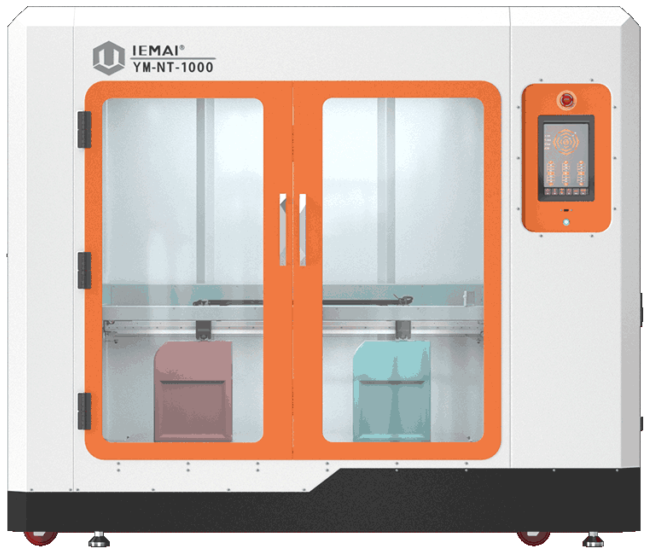

SPECIFICATIONS IEMAI YM-NT-1000
Printing Temperature:Max 300℃
Hot Bed Temperature:Max 120℃,Vacuum Adsorption,FR4 Plate/Polymer Membrane
Chamber Temperature:Max 60℃
Filament Box Temperature:Max 60℃
Temperature Secure Function:Temperature PID Auto Tuning,Temperature Stability ±2℃
1.75mm Diameter 3D Printing Filament（Thermoplastic）
Composite:CF-PC,CF-PA,GF-PA,CF-ABS,CF-ASA,CF-PETG,CF-PLA etc,Dimensional Accuracy 100mm±0.15mm
Engineering:PC,PA,ASA,ABS,TPU,PETG,PLA etc,Dimensional Accuracy 100mm±0.15mm
Support：E-Water,E-Remove etc
Printing Speed:Max 150mm/s
Acceleration:1000mm/s²
Flow:16.5mm³/s(0.6mm Nozzle，100mm/s Speed,Under Condition of PLA Printing)
Cooling Method:Air Cooling
Nozzle Quantity:2 Nozzle Modular，IDEX Individual Motion
Nozzle Size:0.6mm（Standard）/0.4mm（Optional）
Nozzle Material:Copper Alloy（Pure Materials）/Hardened Steel（Fiber Reinforced Materials）
Recommended Layer Thickness:0.05-0.3mm
XYZ Axis Motor:High Torque Stepper Motor
XY Axis Transmission:Linear Guide & Synchronize Belt
Z Axis Transmission:Rod Guide & Ball Screw
Positioning Accuracy:X/Y:5.86μm Z:1.56μm
Screen:10.1In Color Touch Screen
Screen Resolution Ratio:1280x800Px
Flash Memory:4GB
Internal Memory:16GB
Motion Control Chip:STM32 ARM Cortex-M4 180MHz
Logic Control Chip:RK3588S Octa-Core 2.4GHz+1.8GHz
Slicing Software:IEMAI 3D SLICER,CURA,S3D,Prusa,OrcaSlicer
Feature Functionality:
Power Failure Recovery, Filament Detection, Automatic Leveling, Automatic Switch-Off, Material Feeders Synchronize Control, Dual Nozzle IDEX Left Right Individual Motion, Dual Nozzle XYZ Distance Calibration, Automatic Cleaning Nozzle, Vacuum Adsorption Platform, Temperature PID Auto Tuning, Cloud Remote OTA
Machine Operating System:Linux
Data Transmission:Ethernet,USB,WIFI
Cloud Monitor and Control（Free）
Local Network Transmission and Control（Applicable to Confidentiality Enterprises,USD 980 Permanently Authorize 3 Accounts,USD 120 for Each Additional Account）
Motion Control Firmware:Optimized Firmware Based On Marlin 2nd Development
File Formats:STL,OBJ,3MF etc
Operating System:Windows10/11 64 Bit
Build Volume:1000*1000*1000mm
Machine Size:1890*1450*1600mm
Package Size:2050*1545*1790mm
Net Weight:700KG
Gross Weight:780KG
Brand:Mean Well
Power Supply:220V±10% 50-60Hz Max Power 6200W
24 Hrs Average Power Consumption：3KW/H（ABS Printing） 0.5KW/H（PLA Printing）
Machine,Tool Kits,Start-Up Material Sets,Spare Parts,Slicing Software（Free）
YM-NT-1000 is specially designed for engineering plastic, with a temperature of 300 °C extruder temperature and 120 °C
hot bed temperature, it is able to support most of the plastic on the market. It had a modular mechanism on the
extruder which allow it to have simple maintenance and able to equip large-flow print extruder for massive print.

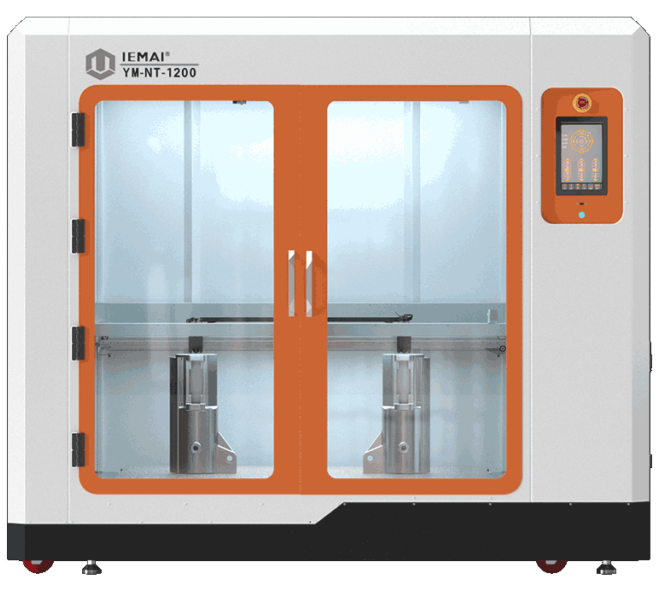

SPECIFICATIONS IEMAI YM-NT-1200
Printing Temperature:Max 300℃
Hot Bed Temperature:Max 120℃,Vacuum Adsorption,Polymer Membrane
Chamber Temperature:Max 60℃
Filament Box Temperature:Max 60℃
Temperature Secure Function:Temperature PID Auto Tuning,Temperature Stability ±2℃
1.75mm Diameter 3D Printing Filament（Thermoplastic）
Composite:CF-PC,CF-PA,GF-PA,CF-ABS,CF-ASA,CF-PETG,CF-PLA etc,Dimensional Accuracy 100mm±0.15mm
Engineering:PC,PA,ASA,ABS,TPU,PETG,PLA etc,Dimensional Accuracy 100mm±0.15mm
Support：E-Water,E-Remove etc
Printing Speed:Max 150mm/s
Acceleration:1000mm/s²
Flow:16.5mm³/s(0.6mm Nozzle，100mm/s Speed,Under Condition of PLA Printing)
Cooling Method:Air Cooling
Nozzle Quantity:2 Nozzle Modular，IDEX Individual Motion
Nozzle Size:0.6mm（Standard）/0.4mm（Optional）
Nozzle Material:Copper Alloy（Pure Materials）/Hardened Steel（Fiber Reinforced Materials）
Recommended Layer Thickness:0.05-0.3mm
XYZ Axis Motor:High Torque Stepper Motor
XY Axis Transmission:Linear Guide & Synchronize Belt
Z Axis Transmission:Rod Guide & Ball Screw
Positioning Accuracy:X/Y:5.86μm Z:1.56μm
Screen:10.1In Color Touch Screen
Screen Resolution Ratio:1280x800Px
Flash Memory:4GB
Internal Memory:16GB
Motion Control Chip:STM32 ARM Cortex-M4 180MHz
Logic Control Chip:RK3588S Octa-Core 64Bits 2.4GHz+1.8GHz
Slicing Software:IEMAI 3D SLICER,CURA,S3D,Prusa,OrcaSlicer
Feature Functionality:Power Failure Recovery,Filament Detection,Automatic Leveling,Automatic Switch-Off,Material Feeders Synchronize Control,Dual Nozzle IDEX Left Right Individual Motion,Dual Nozzle XYZ Distance Calibration,
Automatic Cleaning Nozzle,Vacuum Adsorption Platform,Temperature PID Auto Tuning,Cloud Remote OTA
Machine Operating System:Linux
Data Transmission:Ethernet,USB,WIFI
Cloud Monitor and Control（Free）
Local Network Transmission and Control (Applicable to Confidentiality Enterprises,USD 980 Permanently Authorize 3 Accounts,USD 120 for Each Additional Account)
Motion Control Firmware:Optimized Firmware Based On Marlin 2nd Development
File Formats:STL,OBJ,3MF etc
Operating System:Windows10/11 64 Bit
Build Volume:1200*1200*1200mm
Machine Size:2090*1650*1810mm
Package Size:2250*1745*2000mm
Net Weight:900KG
Gross Weight:1000KG
Brand:Mean Well
Power Supply:220V±10% 50-60Hz Max Power 8400W
24 Hrs Average Power Consumption:3.5KW/H(ABS Printing) 0.5KW/H(PLA Printing)
Machine,Tool Kits,Start-Up Material Sets,Spare Parts,Slicing Software(Free)
YM-NT-1200 is specially designed for engineering plastic, with a temperature of 300 °C extruder temperature and 120 °C
hot bed temperature, it is able to support most of the plastic on the market. It had a modular mechanism on the
extruder which allow it to have simple maintenance and able to equip large-flow print extruder for massive print.
